MEKANISK
RØRKLEMME
-utvendig rørjustering

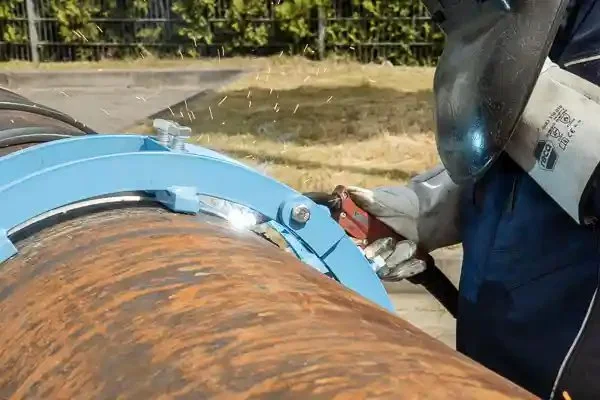

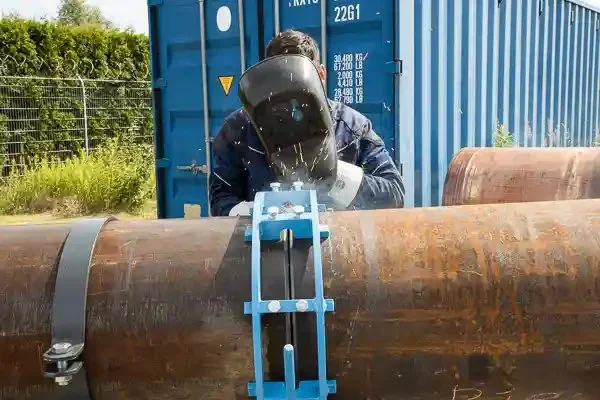

Mekanisk rørklemme fra DWT PipeTools gjør det mulig å justere rør ved hjelp av justeringsskruene, slik at det kan utføres punktsveising uten forskyvning av rørkantene.
De brede broene gjør det mulig å sveise opptil 80 prosent av rotpasset uten å fjerne klemmen.
80 % av rotpasset kan utføres uten å løsne sentreringen.
Rørdiameter: 3 – 48 tommer.
Tilgjengelig i lett, medium-duty (med broer) og medium-duty (uten broer) versjon.
For punktsveising eller sentrering av rør.
-
DN 80, 3" (88 mm), 5,3 kg
DN 100, 4" (114 mm), 6,0 kg
DN 125, 5" (141 mm), 6,3 kg
DN 150, 6" (168 mm), 8,5 kg
DN 200, 8" (219 mm), 11,0 kg
DN 250, 10" (273 mm), 15,0 kg
DN 300, 12" (323 mm), 17,0 kg
DN 350, 14" (355 mm), 20,5 kg
DN 400, 16" (406 mm), 22,0 kg
DN 450, 18" (457 mm), 24,5 kg
-
DN 100, 4" (114 mm), 9,0 kg
DN 125, 5" (141 mm), 9,5 kg
DN 150, 6" (168 mm), 10,0 kg
DN 200, 8" (219 mm), 13,0 kg
DN 250, 10" (273 mm), 17,0 kg
DN 300, 12" (323 mm), 23,0 kg
DN 350, 14" (355 mm), 27,0 kg
DN 400, 16" (406 mm), 31,0 kg
DN 450, 18" (457 mm), 36,0 kg
DN 500, 20" (508 mm), 38,0 kg
-
DN 4016", (406 mm), 33,0 kg
DN 450, 18" (457 mm), 38,0 kg
DN 500, 20" (508 mm), 42,0 kg
DN 550, 22" (559 mm), 49,0 kg
DN 600, 24" (610 mm), 52,0 kg
DN 700, 28" (711 mm), 58,0 kg
DN 750, 30" (762 mm), 60,0 kg
DN 800, 32" (813 mm), 62,0 kg
DN 900, 36" (914 mm), 70,0 kg
DN 1.000, 40" (1.016 mm), 72,0 kg
DN 1.050, 42" (1.067 mm), 78,0 kg
DN 1.100, 44" (1.118 mm), 85,0 kg
DN 1.200, 48" (1.219 mm), 100,0 kg
